Feed-Through Terminal Blocks
Feed-through terminal blocks for secure conductor-to-conductor connections and reliable power and signal transmission in electronic and industrial equipment.
Filter by Specifications
Narrow products by pitch, number of positions, wire range, rated current and other key parameters.
Selection Support
Get help selecting the right terminal block for your connection layout, conductor size and electrical requirements.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
Feed-Through Terminal Blocks (22)
ULO-TB-230
8.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 8.0mm
- Rated current
- 32A
- Rated voltage
- 450V
- Connection method
- Screw connection

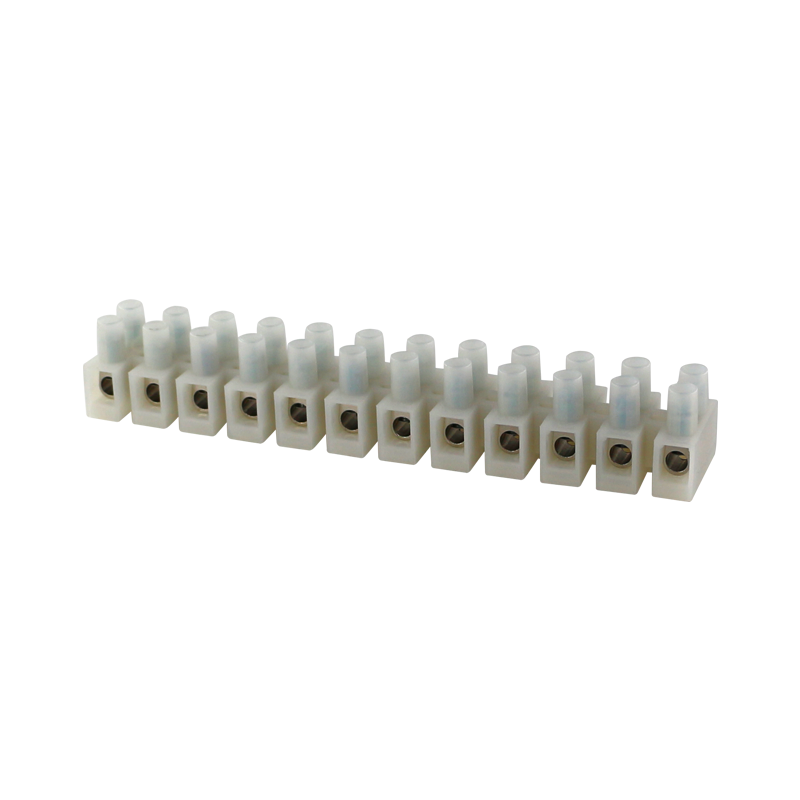

ULO-TB-230WP
8.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 8.0mm
- Rated current
- 24A
- Rated voltage
- 450V
- Connection method
- Screw connection

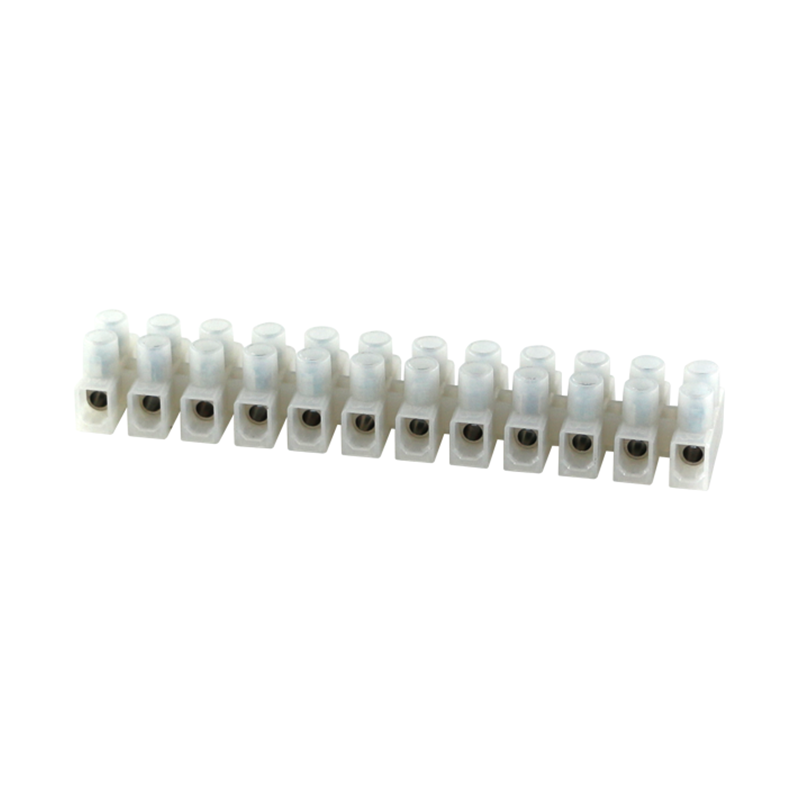

ULO-PA8H
8.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 8.0mm
- Rated current
- 32A
- Rated voltage
- 450V
- Connection method
- Screw connection
ULO-PA8HWP
8.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 8.0mm
- Rated current
- 24A
- Rated voltage
- 450V
- Connection method
- Screw connection
ULO-TB-500
10.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 10.0mm
- Rated current
- 32A
- Rated voltage
- 450V
- Connection method
- Screw connection
ULO-TB-500WP
10.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 10.0mm
- Rated current
- 32A
- Rated voltage
- 450V
- Connection method
- Screw connection
ULO-TB-PA10H
10.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 10.0mm
- Rated current
- 32A
- Rated voltage
- 450V
- Connection method
- Screw connection

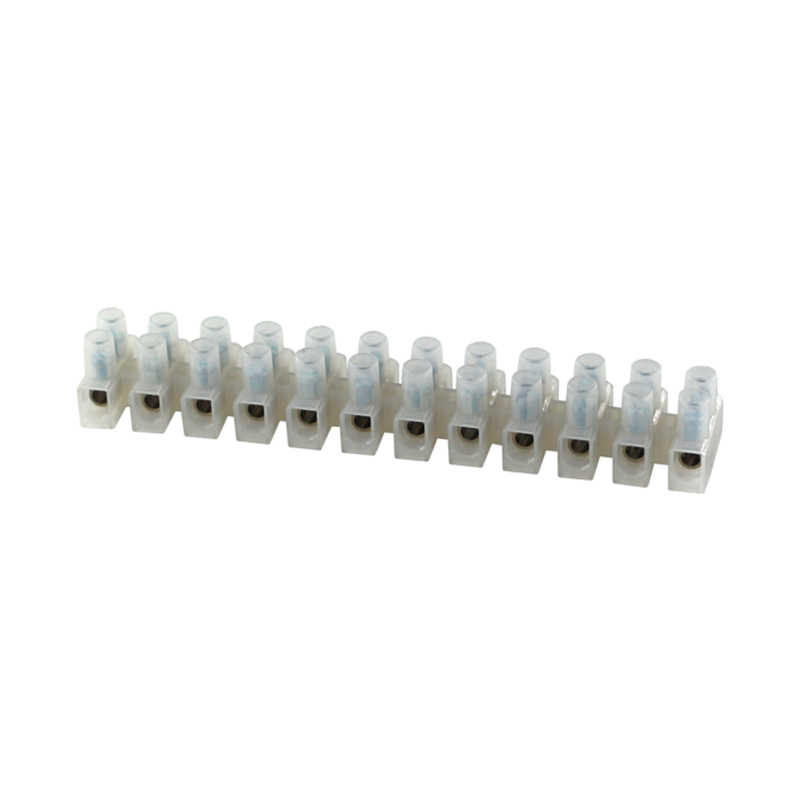

ULO-TB-PA10HWP
10.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 10.0mm
- Rated current
- 32A
- Rated voltage
- 450V
- Connection method
- Screw connection

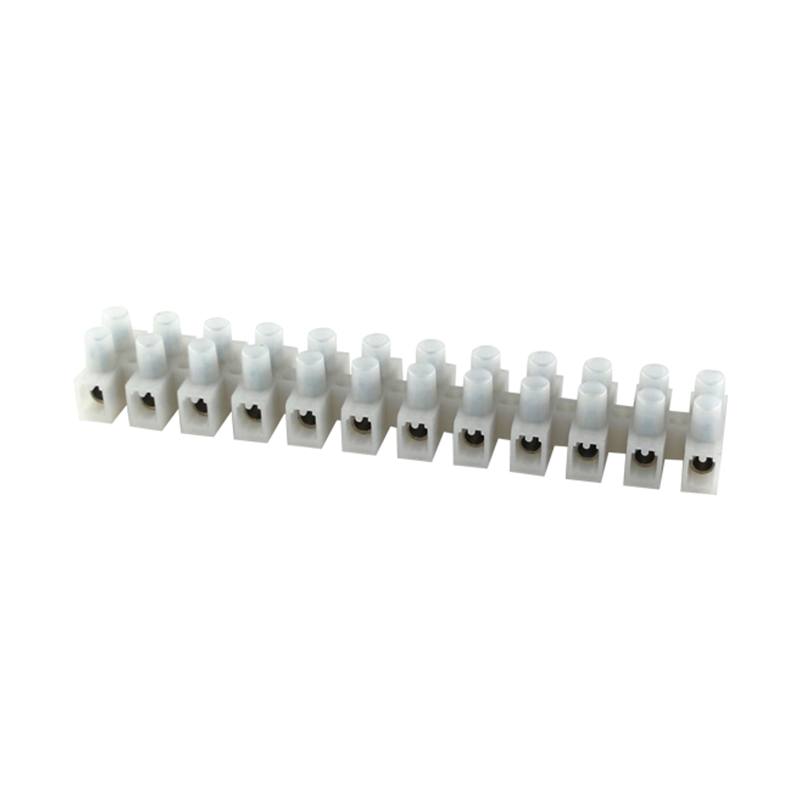

ULO-TB-PA12H
12.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 12.0mm
- Rated current
- 41A
- Rated voltage
- 450V
- Connection method
- Screw connection
ULO-TB-PA12HWP
12.0 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 12.0mm
- Rated current
- 41A
- Rated voltage
- 450V
- Connection method
- Screw connection
ULO-TB-PA14H
13.5 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 13.5mm
- Rated current
- 57A
- Rated voltage
- 750V
- Connection method
- Screw connection
ULO-TB-PA14HWP
13.5 mm feed-through terminal block with screw connection for reliable field wiring and power distribution connections.
- Pitch
- 13.5mm
- Rated current
- 57A
- Rated voltage
- 750V
- Connection method
- Screw connection
