ULO-PA8H
Compact feed-through terminal block for feed-through wiring and panel connection points in electrical equipment, featuring 8.0 mm pitch, 32A/450V, screw connection.
Certifications
Core Applications
ULO-PA8H
Compact feed-through terminal block for feed-through wiring and panel connection points in electrical equipment, featuring 8.0 mm pitch, 32A/450V, screw connection.
Product Overview

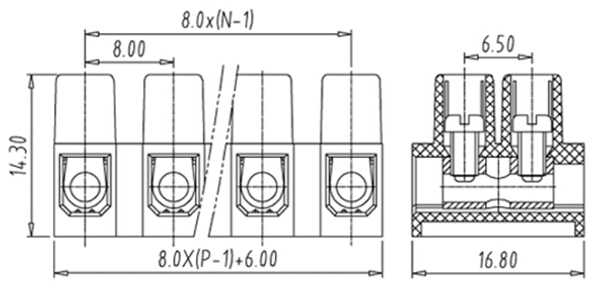

The ULO-PA8H is an 8.0 mm feed-through terminal block designed for feed-through wiring and panel connection points in electrical equipment. Key specifications include 8.0 mm pitch, 32A rated current, 450V rated voltage, screw connection, available in 2 to 12 positions. Product design details include PA66 insulation, UL94V-0 flammability rating, default green housing color.
Product Family
Key Features
Feed-Through Wiring Design
Provides reliable straight-through connection for power and signal wiring in control cabinets and electrical panels.
Flexible Wire Connection
Supports different wire sizes and pole configurations to meet various cabinet wiring and distribution requirements.
Standard DIN-Rail Installation
Modular terminal block design enables quick DIN-rail mounting, organized wiring, and easy system expansion.
Typical Applications
Control Cabinet Wiring
Ideal for organized power and signal wiring inside industrial control cabinets and electrical panels.
Power Distribution
Used for distributing power circuits between power supplies, controllers, relays, sensors, and field devices.
Signal Transfer
Suitable for transferring control signals between PLCs, terminal strips, field wiring, and automation equipment.
Industrial Equipment Panels
Applied in machinery, automation systems, power equipment, and electrical distribution boxes requiring reliable wiring connection.
