Product Range
Browse available box header models and compatible IDC cable connectors.
Box Headers
PCB-mounted box headers for secure mating with compatible IDC ribbon cable connectors, supporting reliable wire-to-board signal connections in electronic equipment.
Filter by Specifications
Narrow products by pitch, number of positions, row configuration, mounting orientation and other key parameters.
Selection Support
Get help matching box headers with compatible IDC connectors and your PCB layout requirements.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
Box Headers (9)

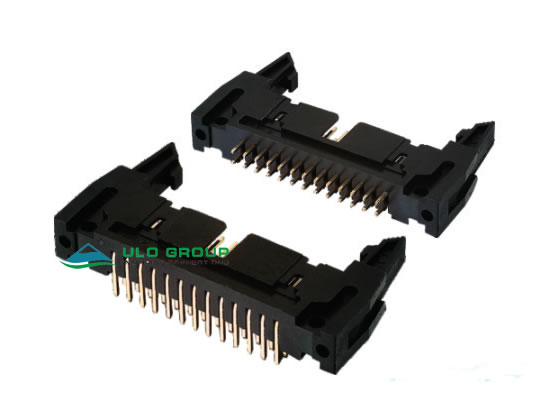

ULO-SH399
2.54mm Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing.
- Pitch
- 2.54mm
- Type
- Shrouded Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- Thermoplastic, UL94V-0

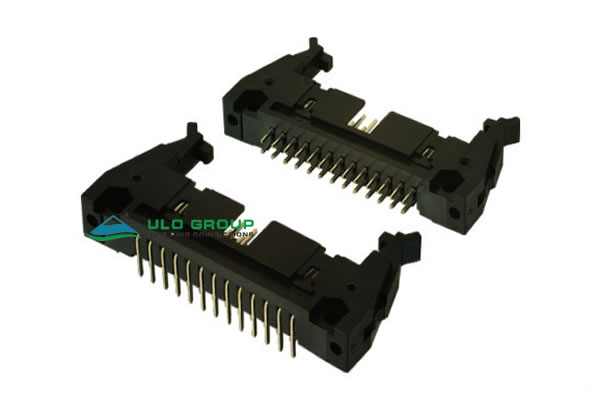

ULO-SH399A
2.54mm Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing.
- Pitch
- 2.54mm
- Type
- Shrouded Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- Thermoplastic, UL94V-0

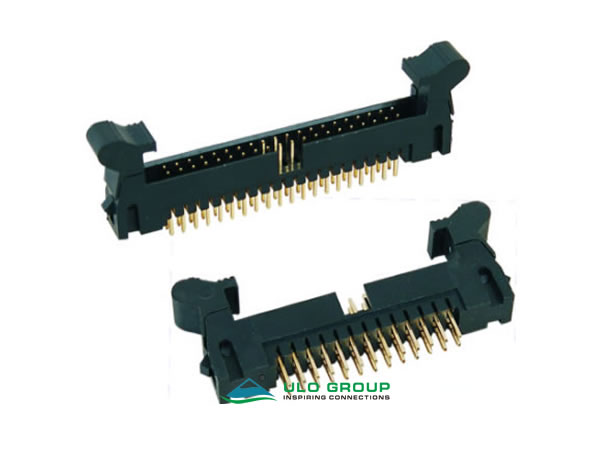

ULO-SH399B
2.0mm Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing.
- Pitch
- 2.0mm
- Type
- Shrouded Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- PA-46

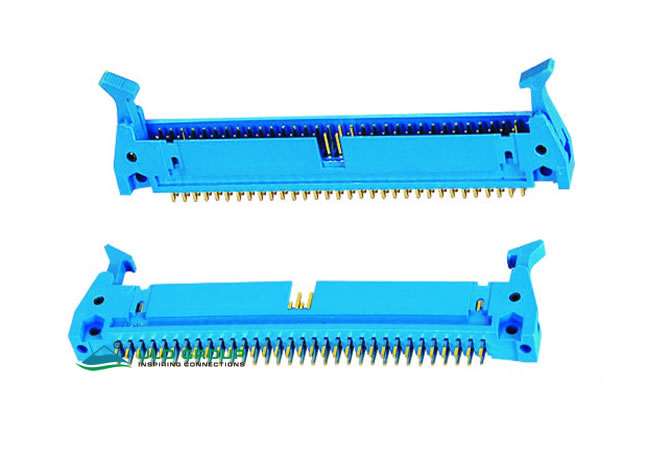

ULO-SH399C
2.54mm Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing.
- Pitch
- 2.54mm
- Type
- Shrouded Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- PBT With Glass fiber filled,30 G.F.

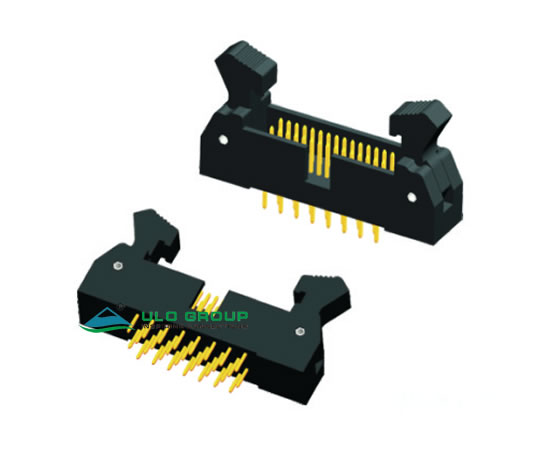

ULO-SH399D
1.27*2.54mm Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing.
- Pitch
- 1.27*2.54mm
- Type
- Shrouded Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- PBT(UL 94V- 0)

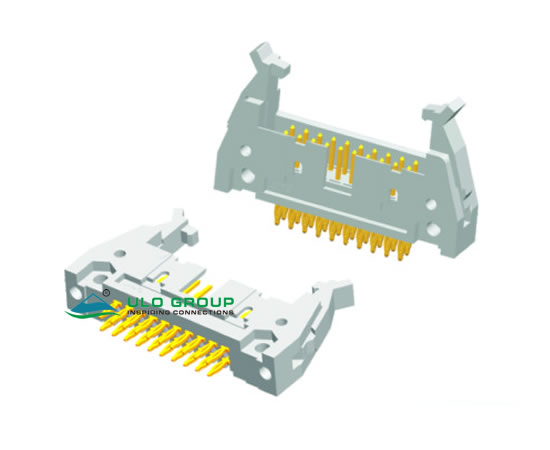

ULO-SH399E
2.54mm Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing.
- Pitch
- 2.54mm
- Type
- Shrouded Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- Thermoplastic with G.F filled

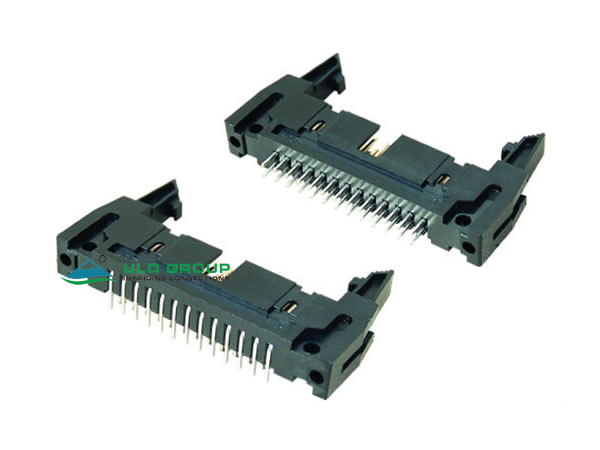

ULO-SH399F
2.54mm Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing.
- Pitch
- 2.54mm
- Type
- Shrouded Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- Thermoplastic with G.F filled

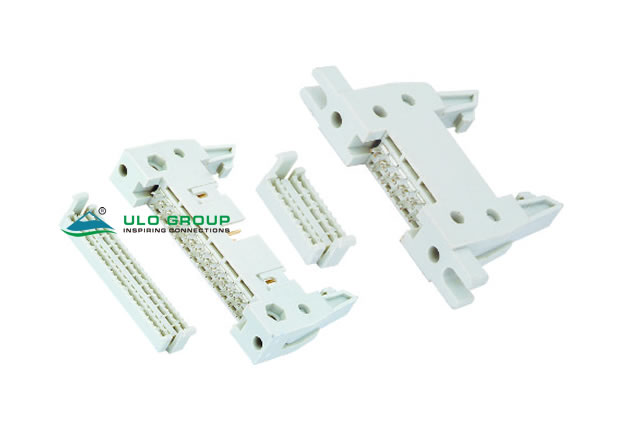

ULO-SH400
1.27mm IDC Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing.
- Pitch
- 1.27mm
- Type
- IDC Shrouded Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- Thermoplastic, UL94V-0

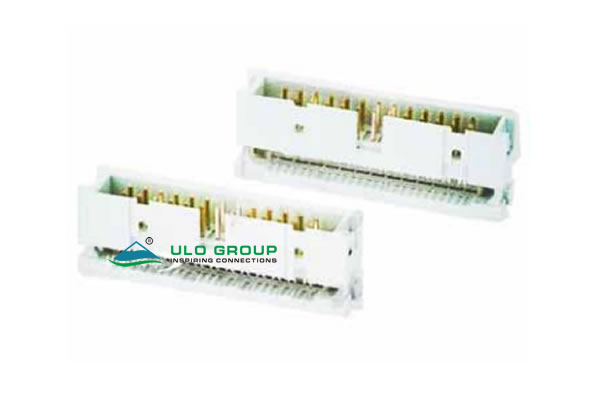

ULO-SH403
1.27mm IDC Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing.
- Pitch
- 1.27mm
- Type
- IDC Shrouded Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- Thermoplastic, UL94V-0
Need help finding the right product?
Tell us your application requirements and our team will help you identify the right product and configuration.
