ULO-SH399A
ULO-SH399A box header for reliable PCB, cable, or electronic interface connection.
Certifications
Core Applications
ULO-SH399A
ULO-SH399A box header for reliable PCB, cable, or electronic interface connection.
Product Overview
The ULO-SH399A is a box header designed for reliable electronic and PCB connection applications. It supports 2.54mm Shrouded Header for keyed ribbon cable connection and reliable PCB signal routing. Key parameters include pitch: 2.54mm, type: Shrouded Header, withstand voltage: 500V AC / Minute, operating temperature: 0°C~+85°C. This series is suitable for compact electronic equipment, control devices, signal interfaces, test fixtures, and general PCB assembly requirements.

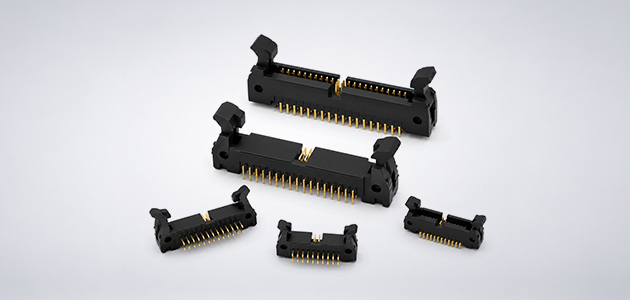

Product Family
Key Features
Polarized Box Design
Shrouded housing helps prevent incorrect mating and improves connection reliability with IDC cable assemblies.
Stable PCB Mounting
Designed for secure board mounting and stable signal transmission between PCB and ribbon cable.
Multiple Pin Configurations
Available in different pin counts, pitches, and straight or right-angle versions for flexible PCB layouts.
Typical Applications
Ribbon Cable Connection
Used with IDC sockets and flat ribbon cables for board-to-cable connection.
Industrial Control Boards
Suitable for PLCs, controllers, instruments, and automation equipment.
Communication & Electronic Devices
Ideal for signal transmission in communication equipment, test devices, and electronic modules.
Internal Equipment Wiring
Used for organized internal wiring between PCBs, display boards, control boards, and interface modules.
