Product Range
Browse available horizontal integrated I/O modules and compatible components.
Horizontal Integrated I/O Modules
Compact integrated I/O modules with a horizontal form factor for organized signal connection, efficient cabinet wiring and reliable distributed automation.
Filter by Specifications
Narrow products by communication interface, I/O type, channel configuration and other key parameters.
Selection Support
Get help selecting modules for your network architecture, signal requirements and cabinet layout.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
Horizontal Integrated I/O Modules (30)
UH-PN-D32C000
NPN/PNP-compatible digital inputs with isolation and channel diagnostics.
- Protocol
- PROFINET
- Module Type
- Digital Input Module
- Channels
- 32 DI
- Operating Voltage
- 24V DC +20%/-15%

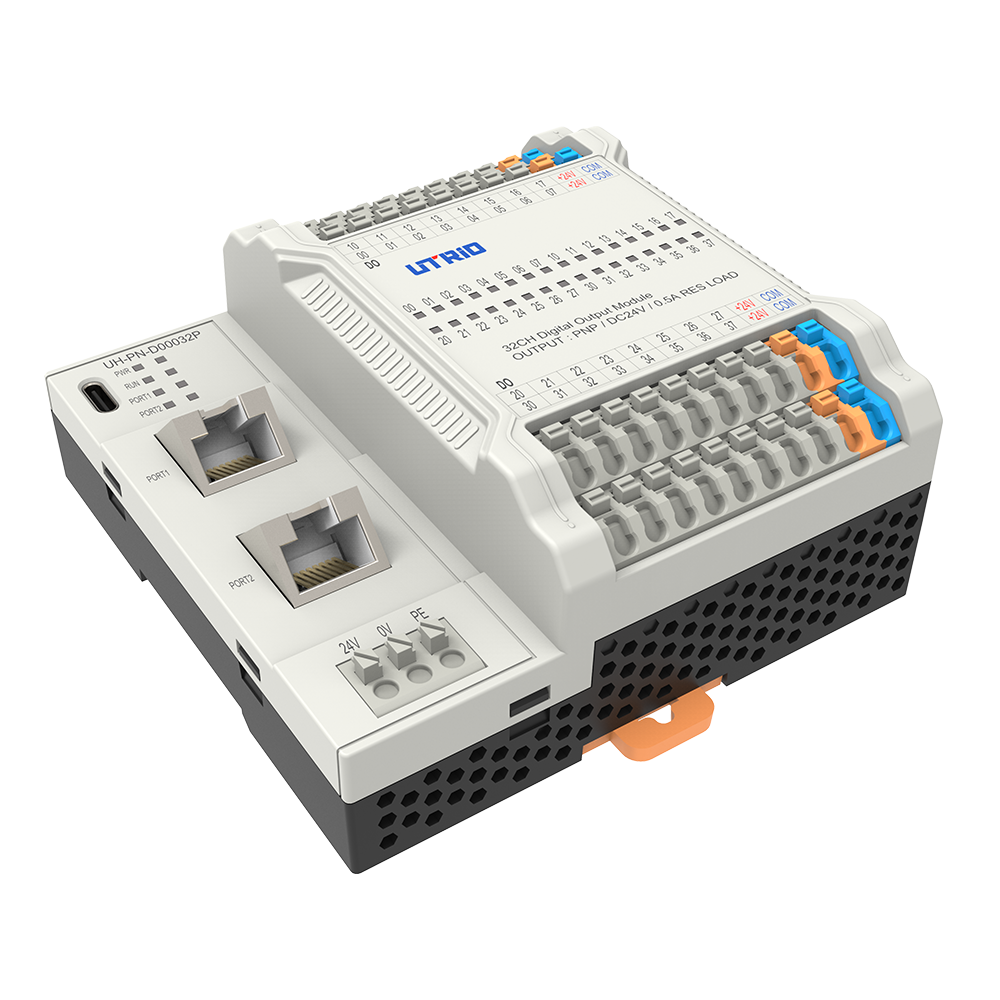

UH-PN-D00032P
PNP digital outputs with reverse-polarity protection and channel diagnostics.
- Protocol
- PROFINET
- Module Type
- Digital Output Module
- Channels
- 32 DO
- Operating Voltage
- 24V DC +20%/-15%

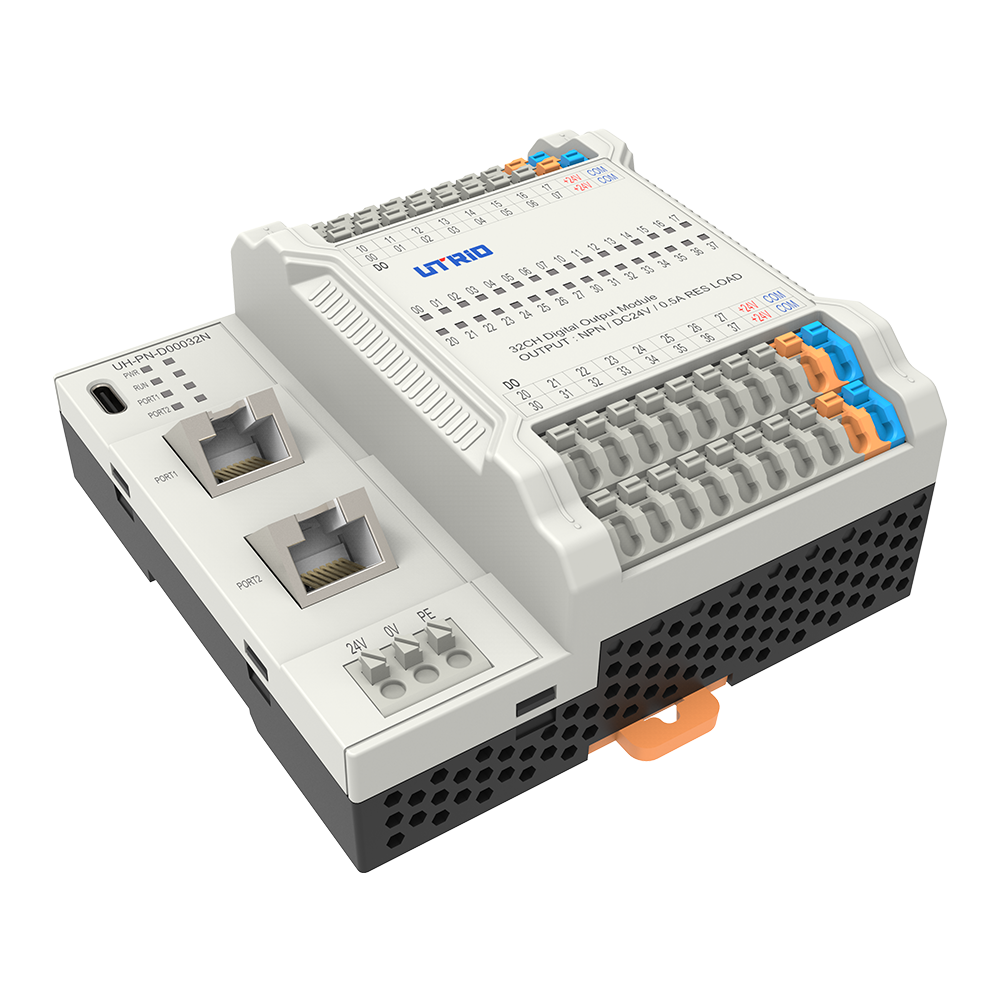

UH-PN-D00032N
NPN digital outputs with reverse-polarity protection and channel diagnostics.
- Protocol
- PROFINET
- Module Type
- Digital Output Module
- Channels
- 32 DO
- Operating Voltage
- 24V DC +20%/-15%
UH-PN-D16C16P
NPN/PNP digital inputs and PNP outputs with isolation and diagnostics.
- Protocol
- PROFINET
- Module Type
- Digital Input/Output Module
- Channels
- 16 DI / 16 DO
- Operating Voltage
- 24V DC +20%/-15%

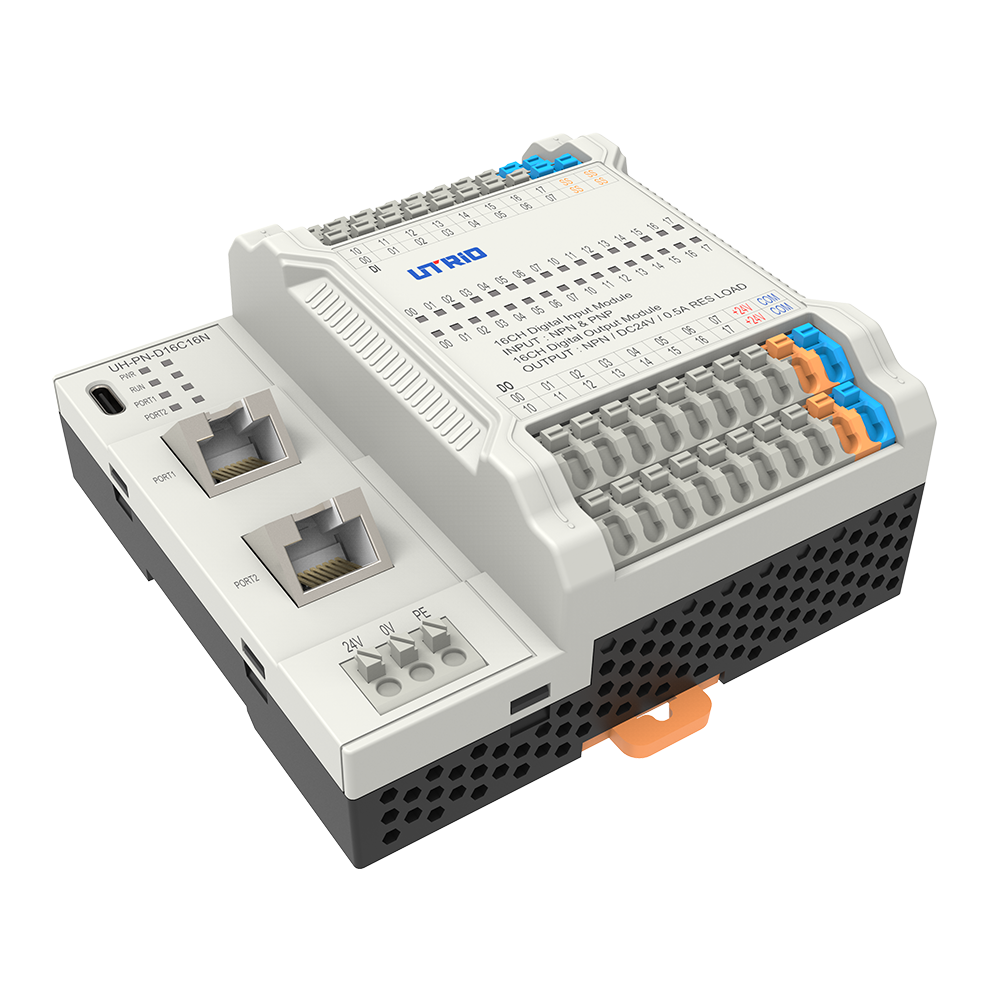

UH-PN-D16C16N
NPN/PNP digital inputs and NPN outputs with isolation and diagnostics.
- Protocol
- PROFINET
- Module Type
- Digital Input/Output Module
- Channels
- 16 DI / 16 DO
- Operating Voltage
- 24V DC +20%/-15%
UH-EC-D32C000
NPN/PNP-compatible digital inputs with isolation and channel diagnostics.
- Protocol
- EtherCAT
- Module Type
- Digital Input Module
- Channels
- 32 DI
- Operating Voltage
- 24V DC +20%/-15%

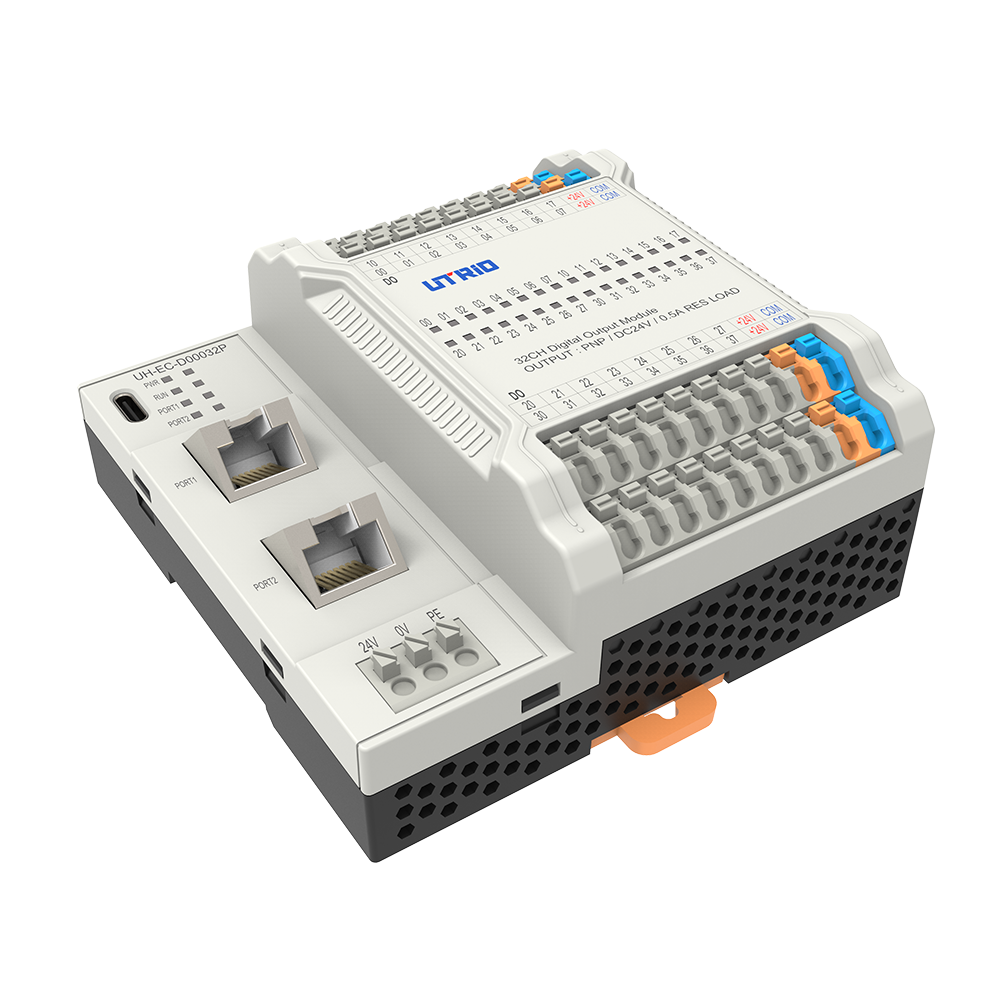

UH-EC-D00032P
PNP digital outputs with reverse-polarity protection and channel diagnostics.
- Protocol
- EtherCAT
- Module Type
- Digital Output Module
- Channels
- 32 DO
- Operating Voltage
- 24V DC +20%/-15%
UH-EC-D00032N
NPN digital outputs with reverse-polarity protection and channel diagnostics.
- Protocol
- EtherCAT
- Module Type
- Digital Output Module
- Channels
- 32 DO
- Operating Voltage
- 24V DC +20%/-15%

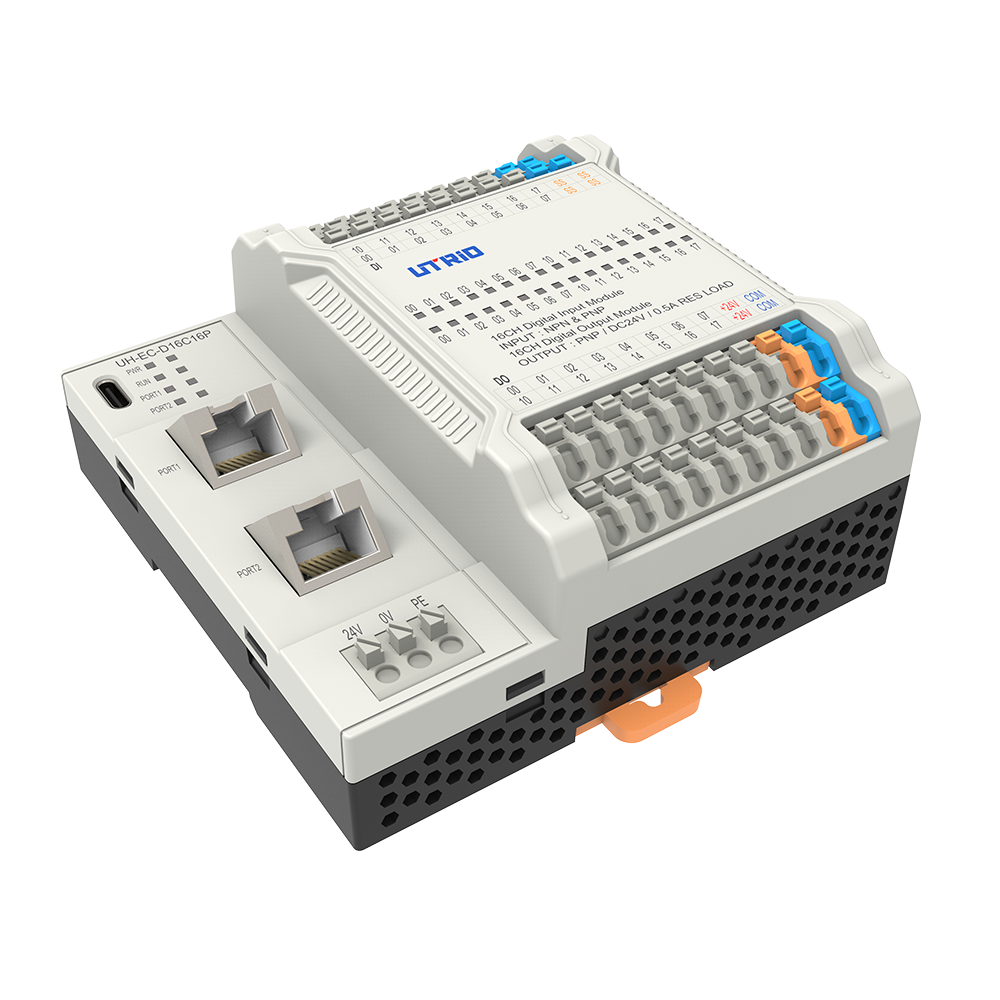

UH-EC-D16C16P
NPN/PNP digital inputs and PNP outputs with isolation and diagnostics.
- Protocol
- EtherCAT
- Module Type
- Digital Input/Output Module
- Channels
- 16 DI / 16 DO
- Operating Voltage
- 24V DC +20%/-15%
UH-EC-D16C16N
NPN/PNP digital inputs and NPN outputs with isolation and diagnostics.
- Protocol
- EtherCAT
- Module Type
- Digital Input/Output Module
- Channels
- 16 DI / 16 DO
- Operating Voltage
- 24V DC +20%/-15%
UH-EIP-D32C000
NPN/PNP-compatible digital inputs with isolation and channel diagnostics.
- Protocol
- EtherNET / IP
- Module Type
- Digital Input Module
- Channels
- 32 DI
- Operating Voltage
- 24V DC +20%/-15%
UH-EIP-D00032P
PNP digital outputs with reverse-polarity protection and channel diagnostics.
- Protocol
- EtherNET / IP
- Module Type
- Digital Output Module
- Channels
- 32 DO
- Operating Voltage
- 24V DC +20%/-15%
Need help finding the right product?
Tell us your application requirements and our team will help you identify the right product and configuration.
