Product Range
Browse available EtherCAT junction models and compatible accessories.
EtherCAT Junctions
EtherCAT junction modules for creating flexible branch, star and tree topologies and expanding distributed EtherCAT networks.
Filter by Specifications
Narrow products by port count, connection type, installation format and other key parameters.
Selection Support
Get help selecting the right junction for your network topology, device count and installation requirements.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
EtherCAT Junctions (2)

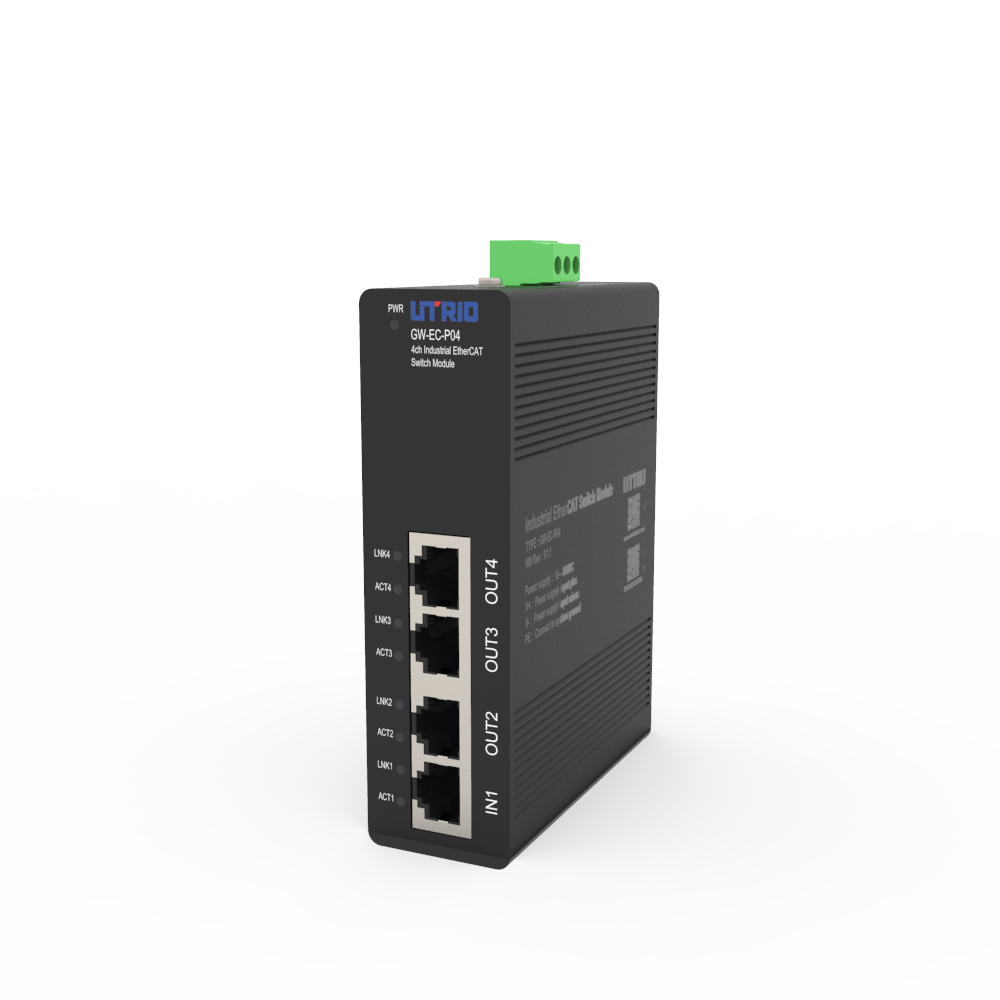

GW-EC-P04
EtherCAT junction module with 4 x RJ45 (1 in 3 out), 10/100M auto-adaptive transmission and flexible branch topology.
- Communication protocol
- EtherCAT slave
- Interfaces
- 4 x RJ45 (1 in 3 out)
- Transmission rate
- 10/100M auto-adaptive
- Topology
- Line, star, tree and other topologies

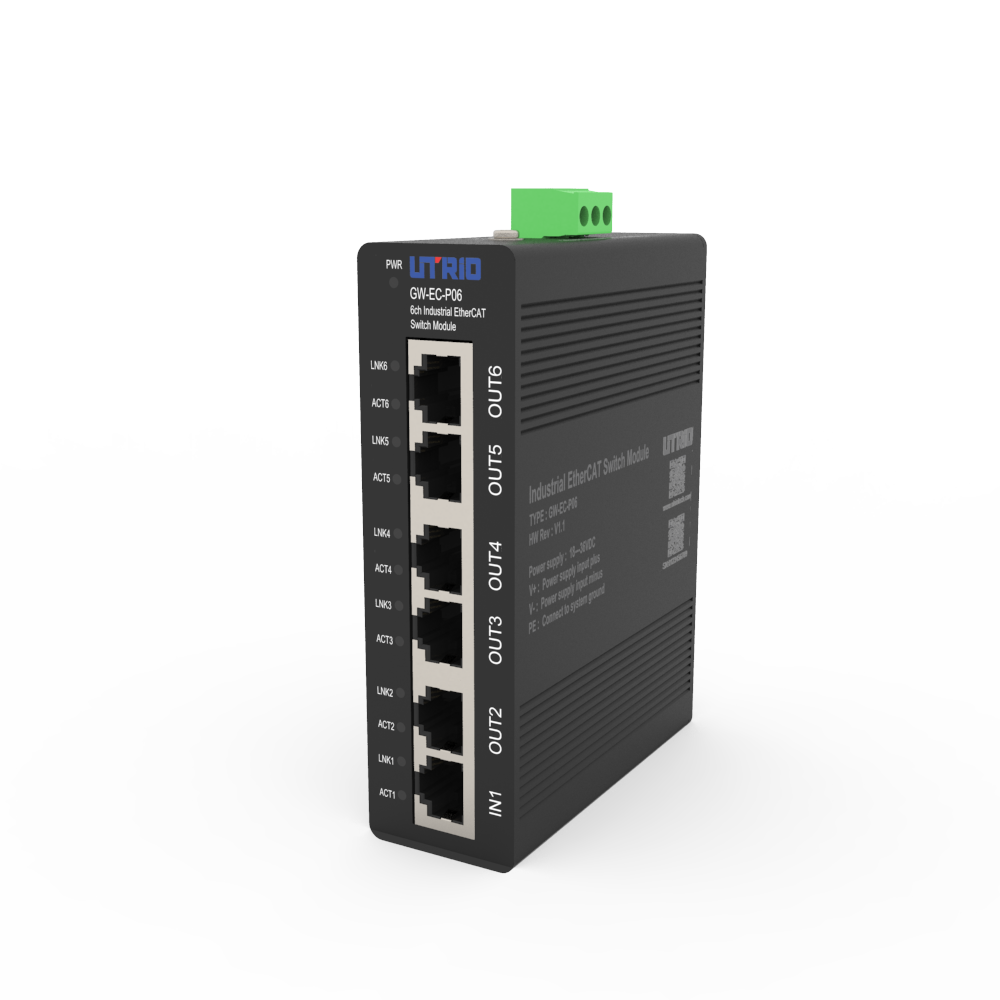

GW-EC-P06
EtherCAT junction module with 6 x RJ45 (1 in 5 out), 10/100M auto-adaptive transmission and flexible branch topology.
- Communication protocol
- EtherCAT slave
- Interfaces
- 6 x RJ45 (1 in 5 out)
- Transmission rate
- 10/100M auto-adaptive
- Topology
- Line, star, tree and other topologies
Need help finding the right product?
Tell us your application requirements and our team will help you identify the right product and configuration.
