Simple Box Headers
PCB-mounted simple box headers for secure mating with compatible IDC ribbon cable sockets, supporting compact and reliable wire-to-board signal connections.
Filter by Specifications
Narrow products by pitch, number of positions, row configuration, mounting orientation and other key parameters.
Selection Support
Get help matching simple box headers with compatible IDC sockets and your PCB layout requirements.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
Simple Box Headers (7)

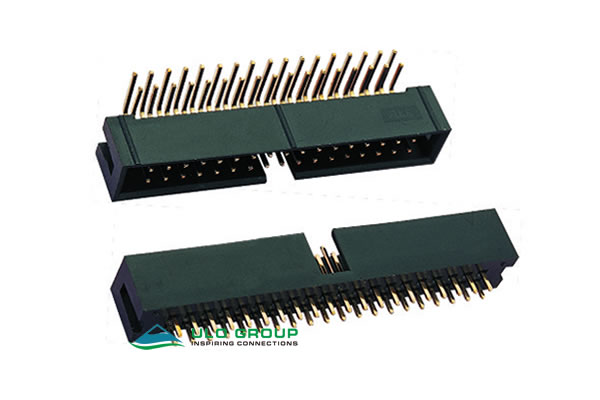

ULO-BH401
2.54mm Box Header for reliable IDC ribbon cable connection on PCB boards.
- Pitch
- 2.54mm
- Type
- Box Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- PA-46(UL 94V-0)

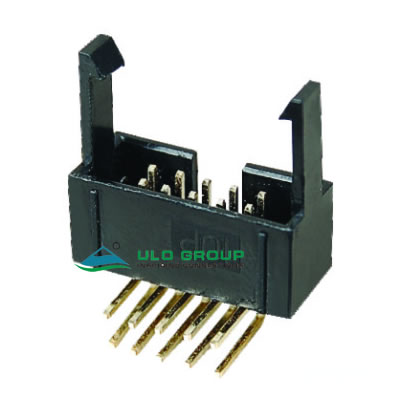

ULO-BH401A
2.54mm Box Header for reliable IDC ribbon cable connection on PCB boards.
- Pitch
- 2.54mm
- Type
- Box Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- Thermoplastic PA-46 with G.F Filled

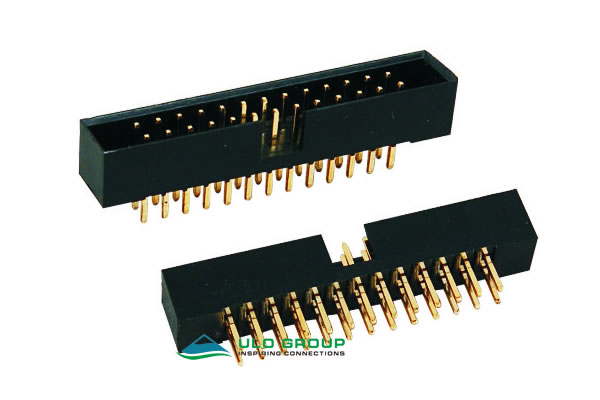

ULO-BH402
2.0mm Box Header for reliable IDC ribbon cable connection on PCB boards.
- Pitch
- 2.0mm
- Type
- Box Header
- Withstand voltage
- 500V AC / Minute
- Insulator material
- Thermoplastic PA-46 with G.F Filled

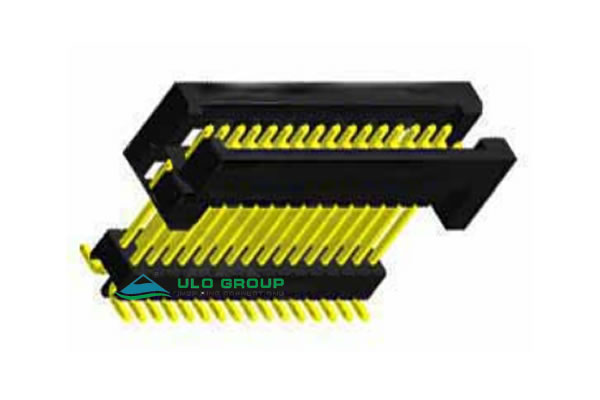

ULO-BH419M
1.27mm Box Header for reliable IDC ribbon cable connection on PCB boards.
- Pitch
- 1.27mm
- Type
- Box Header
- Withstand voltage
- 300V AC / Minute
- Insulator material
- Thermoplastic (UL 94V-0)

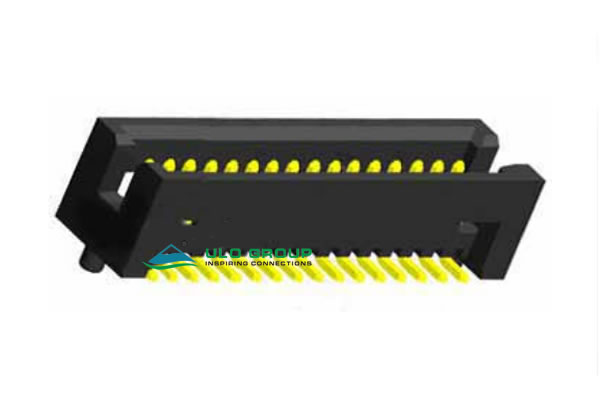

ULO-BH419N
1.27mm Box Header for reliable IDC ribbon cable connection on PCB boards.
- Pitch
- 1.27mm
- Type
- Box Header
- Withstand voltage
- 300V AC / Minute
- Insulator material
- Thermoplastic (UL 94V-0)

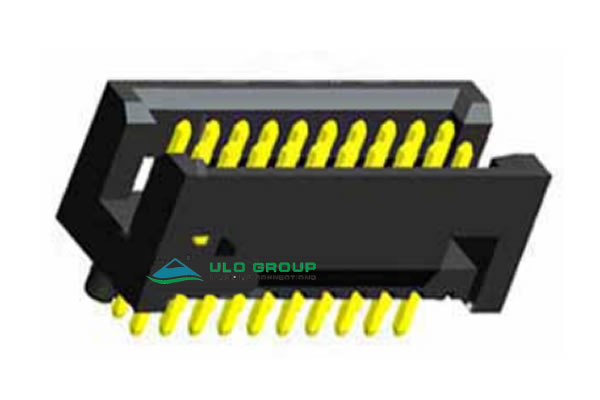

ULO-BH419O
1.27mm Box Header for reliable IDC ribbon cable connection on PCB boards.
- Pitch
- 1.27mm
- Type
- Box Header
- Withstand voltage
- 300V AC / Minute
- Insulator material
- Thermoplastic (UL 94V-0)

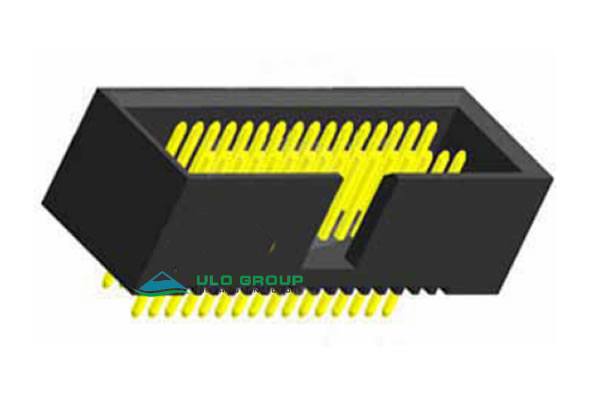

ULO-BH419P
1.27*2.54mm Box Header for reliable IDC ribbon cable connection on PCB boards.
- Pitch
- 1.27*2.54mm
- Type
- Box Header
- Withstand voltage
- 300V AC / Minute
- Insulator material
- Thermoplastic (UL 94V-0)
