Mini-DIN Connectors
PCB-mounted Mini-DIN connectors for reliable multi-pin signal connections in electronic devices, industrial control equipment and interface systems.
Filter by Specifications
Narrow products by number of contacts, mounting style, orientation, termination type and other key parameters.
Selection Support
Get help selecting the right connector for your interface, pin configuration and PCB layout requirements.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
Mini-DIN Connectors (9)

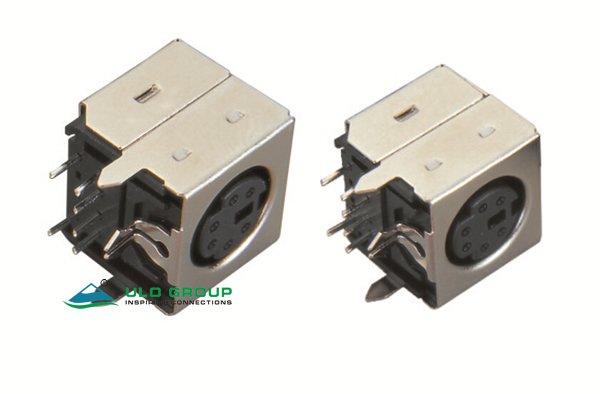

ULO-MD481A
mini DIN 803 Type for compact round signal interfaces in electronic and control equipment.
- Rated voltage
- 50V DC
- Rated current
- 2A Max.Per Pin
- Contact impedance
- 30 Milliohms Max
- Withstand voltage
- 500V AC 1 Minute

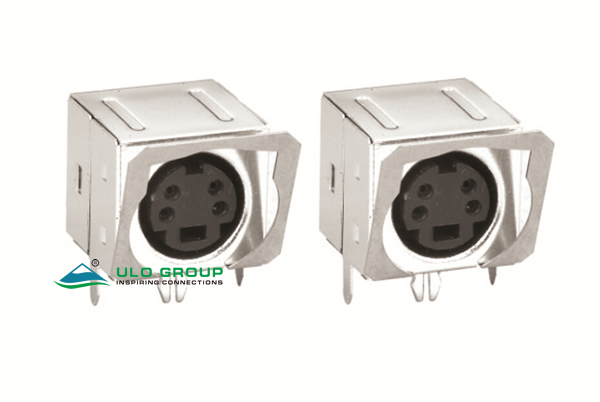

ULO-MD481B
mini DIN 824 Type for compact round signal interfaces in electronic and control equipment.
- Rated voltage
- 50V DC
- Rated current
- 2A Max.Per Pin
- Contact impedance
- 30 Milliohms Max
- Withstand voltage
- 500V AC 1 Minute

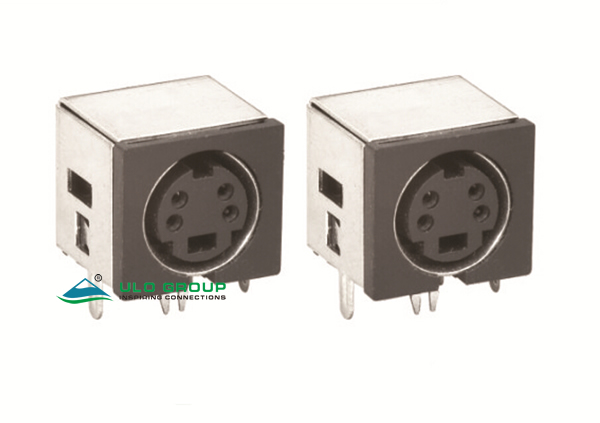

ULO-MD481C
mini DIN 901 Type for compact round signal interfaces in electronic and control equipment.
- Rated voltage
- 50V DC
- Rated current
- 2A Max.Per Pin
- Contact impedance
- 30 Milliohms Max
- Withstand voltage
- 500V AC 1 Minute

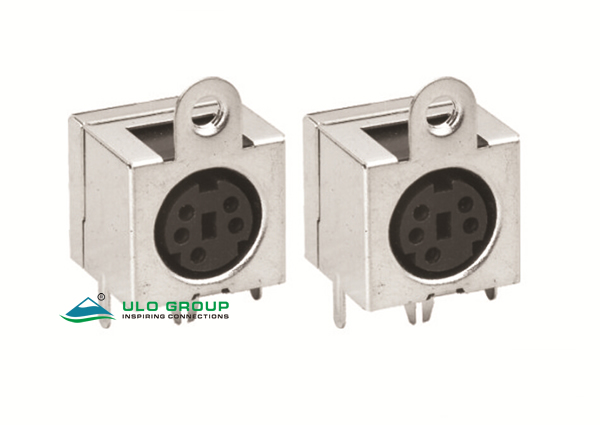

ULO-MD481D
mini DIN 810 Type for compact round signal interfaces in electronic and control equipment.
- Rated voltage
- 50V DC
- Rated current
- 2A Max.Per Pin
- Contact impedance
- 30 Milliohms Max
- Withstand voltage
- 500V AC 1 Minute

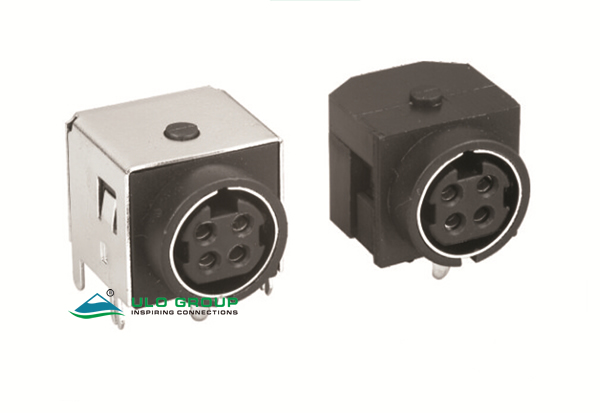

ULO-MD481E
mini DIN 422 Type for compact round signal interfaces in electronic and control equipment.
- Rated voltage
- 50V DC
- Rated current
- 2A Max.Per Pin
- Contact impedance
- 30 Milliohms Max
- Withstand voltage
- 500V AC 1 Minute

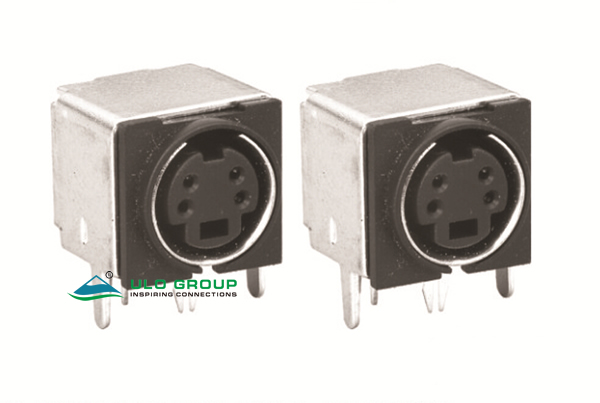

ULO-MD481F
mini DIN 801 Type for compact round signal interfaces in electronic and control equipment.
- Rated voltage
- 50V DC
- Rated current
- 2A Max.Per Pin
- Contact impedance
- 30 Milliohms Max
- Withstand voltage
- 500V AC 1 Minute

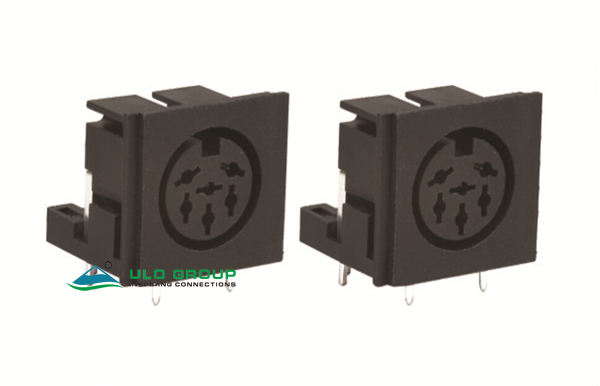

ULO-MD481G
mini DIN 804 Type for compact round signal interfaces in electronic and control equipment.
- Rated voltage
- 30V DC
- Rated current
- 1A Max.Per Pin
- Contact impedance
- 30 Milliohms Max
- Withstand voltage
- 500V AC 1 Minute

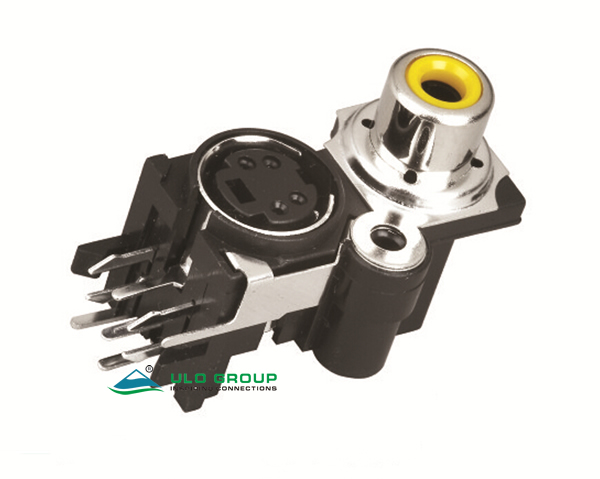

ULO-MD481H
mini DIN 420 Type for compact round signal interfaces in electronic and control equipment.
- Rated voltage
- 50V DC
- Rated current
- 2A Max.Per Pin
- Contact impedance
- 30 Milliohms Max
- Withstand voltage
- 500V AC 1 Minute

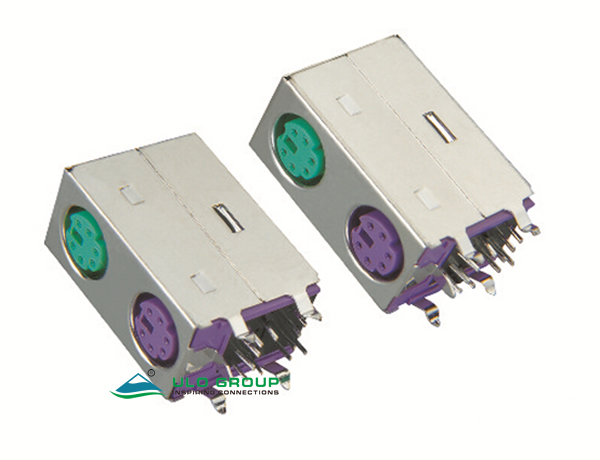

ULO-MD482
mini DIN Type Stack for compact round signal interfaces in electronic and control equipment.
- Rated voltage
- 30V DC
- Rated current
- 1A Max.Per Pin
- Contact impedance
- 30 Milliohms Max
- Withstand voltage
- 500V AC 1 Minute
