ZIF IC Sockets
Lever-actuated ZIF IC sockets for low-force insertion, secure contact and convenient installation and replacement of DIP integrated circuits on printed circuit boards.
Filter by Specifications
Narrow products by pitch, number of contacts, row spacing, package width and other key parameters.
Selection Support
Get help selecting the right socket for your IC package, pin count, row spacing and PCB layout requirements.
Datasheets & Quotes
Access technical documents and request pricing directly from the product list.
ZIF IC Sockets (4)

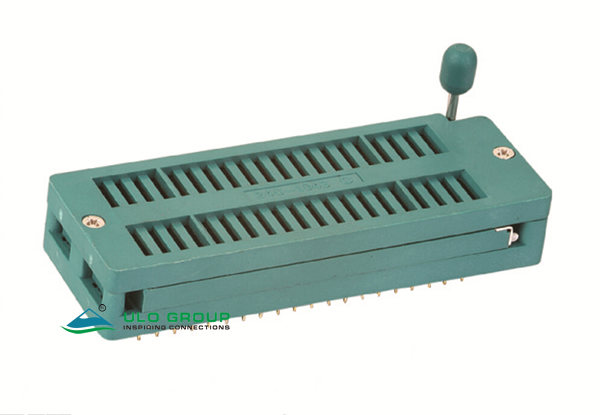

ULO-ZS431
2.54mm 2.54mm ZIF Socket for secured flat cable connection in compact electronic assemblies.
- Insulation resistance
- 1000MΩ Min
- Withstand voltage
- 500V AC / Minute
- Life
- 5,000 Cycles(With Lood)
- Rated power
- 50VDC,100mA

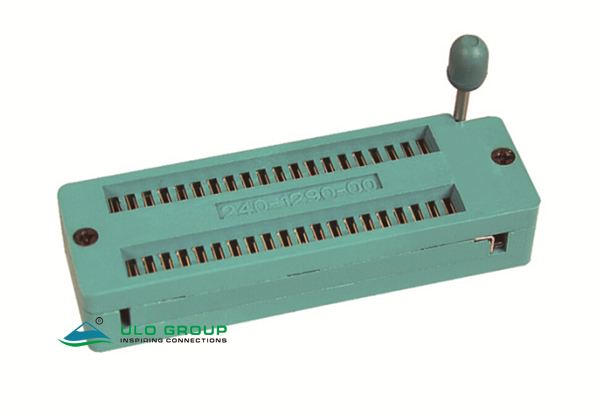

ULO-ZS431A
2.0mm 2.0mm ZIF Socket for secured flat cable connection in compact electronic assemblies.
- Insulation resistance
- 1000MΩ Min
- Withstand voltage
- 500V AC / Minute
- Life
- 5,000 Cycles(With Lood)
- Rated power
- 50VDC,100mA

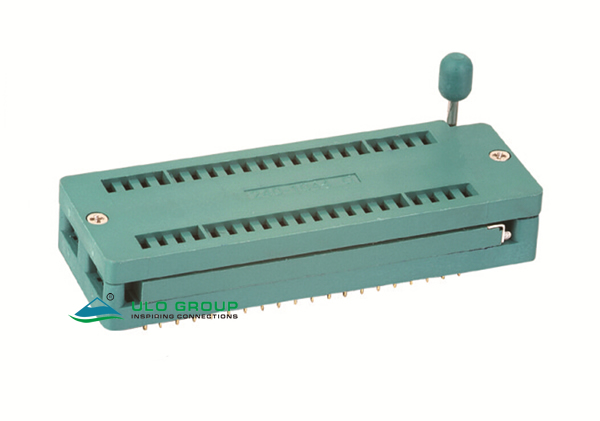

ULO-ZS432
2.54mm 2.54mm ZIF Socket for secured flat cable connection in compact electronic assemblies.
- Insulation resistance
- 1000MΩ Min
- Withstand voltage
- 500V AC / Minute
- Life
- 5,000 Cycles(With Lood)
- Rated power
- 50VDC,100mA

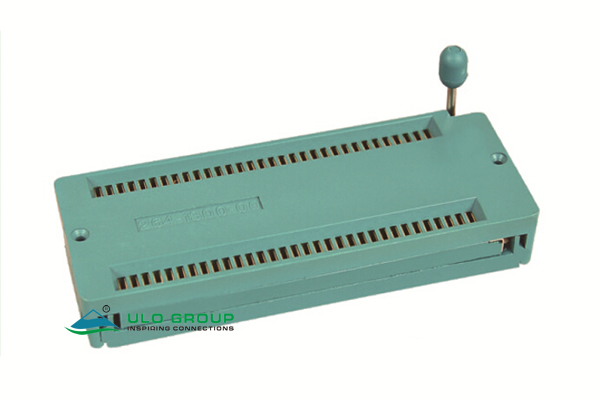

ULO-ZS432A
1.778mm 1.778mm ZIF Socket for secured flat cable connection in compact electronic assemblies.
- Insulation resistance
- 1000MΩ Min
- Withstand voltage
- 500V AC / Minute
- Life
- 5,000 Cycles(With Lood)
- Rated power
- 50VDC,100mA
