ULO-TB440-8KC/5.0
Compact MCS terminal block connector for modular MCS wire-to-board connections with compatible connector and PCB header combinations, featuring 5.0 mm pitch, 16A/250V, spring-cage connection, 0° connection direction, pluggable mounting.
Certifications
Core Applications
ULO-TB440-8KC/5.0
Compact MCS terminal block connector for modular MCS wire-to-board connections with compatible connector and PCB header combinations, featuring 5.0 mm pitch, 16A/250V, spring-cage connection, 0° connection direction, pluggable mounting.
Product Overview
The ULO-TB440-8KC/5.0 is a 5.0 mm MCS terminal block connector designed for modular MCS wire-to-board connections with compatible connector and PCB header combinations. Key specifications include 5.0 mm pitch, 16A rated current, 250V rated voltage, spring-cage connection, 0° connection direction, pluggable mounting, available in 2 to 24 positions. Product design details include PA66 insulation, UL94V-0 flammability rating, default white housing color. Use it with matching products from the same pitch and series to support installation, maintenance and module replacement.
Product Family
Key Features
MCS Modular Plug Design
Designed as the wire-side plug for MCS connector systems, enabling flexible and detachable wiring connections.
Fast Spring Clamp Wiring
Spring clamp connection supports quick, secure wire termination for stable power and signal transmission.
Flexible Connection Options
Suitable for wire-to-wire, board-to-wire, and board-to-board connection when matched with corresponding MCS headers.
Typical Applications
Industrial Control Devices
Ideal for wiring interfaces in PLCs, controllers, I/O modules, drives, and automation equipment.
Power & Signal Connection
Suitable for detachable power supply and control signal connections in industrial electronic devices.
Modular Equipment Design
Used in devices that require quick installation, plug-in maintenance, or flexible module replacement.
PCB Interface Wiring
Works with MCS board-side headers to connect field wiring with printed circuit boards in control and electronic systems.

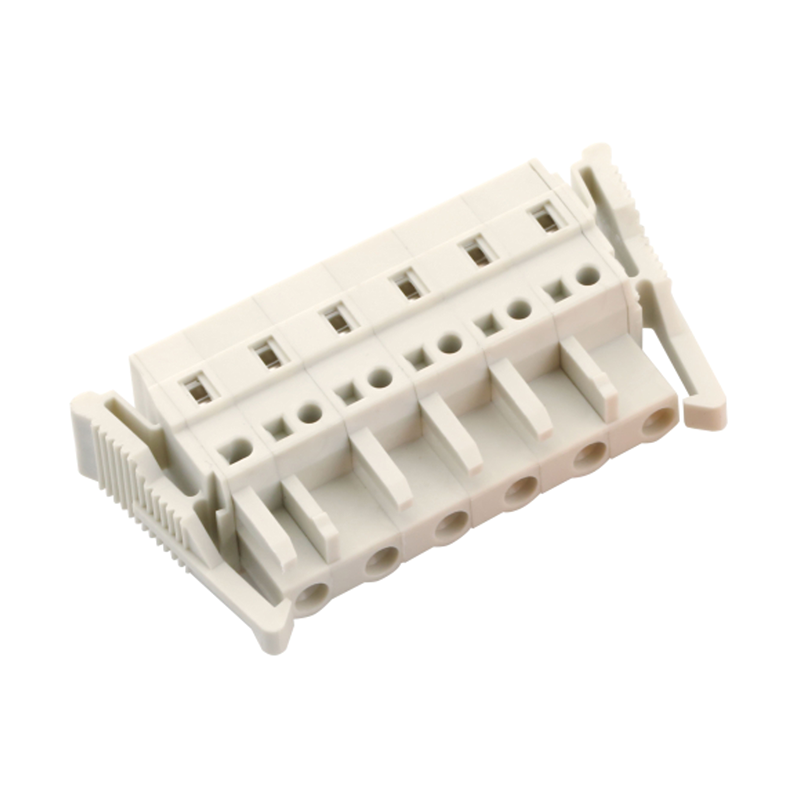

Similar Products
