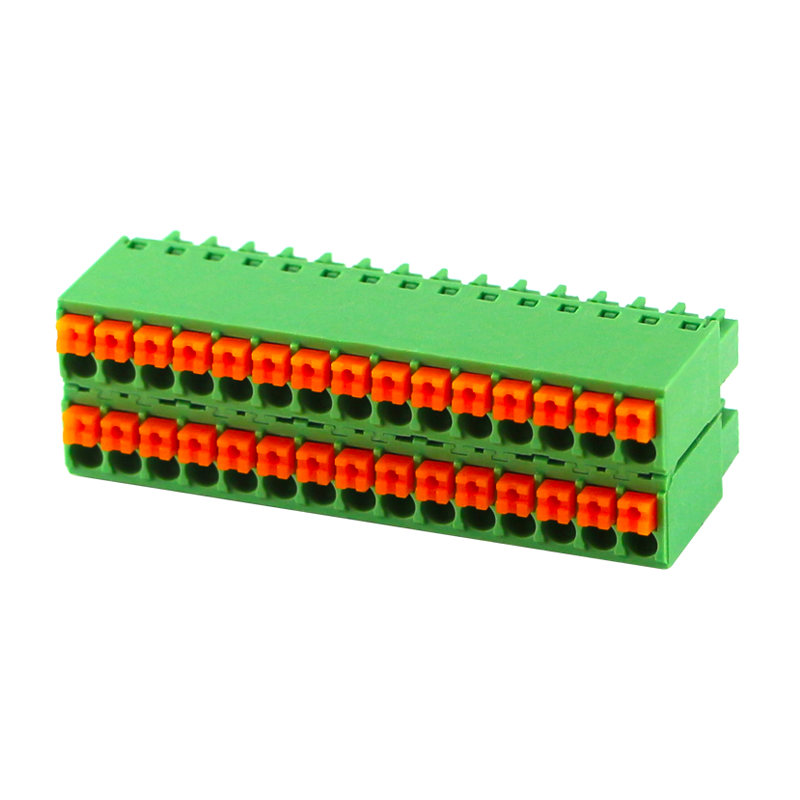

ULO-TB01-15KNHG/3.5
Compact pluggable terminal block plug for detachable wire-to-board connections in control boards, instruments and compact industrial devices, featuring 3.5 mm pitch, 9.5A/250V, push-in spring connection, 0° connection direction, pluggable mounting.
Certifications
Core Applications
ULO-TB01-15KNHG/3.5
Compact pluggable terminal block plug for detachable wire-to-board connections in control boards, instruments and compact industrial devices, featuring 3.5 mm pitch, 9.5A/250V, push-in spring connection, 0° connection direction, pluggable mounting.
Product Overview

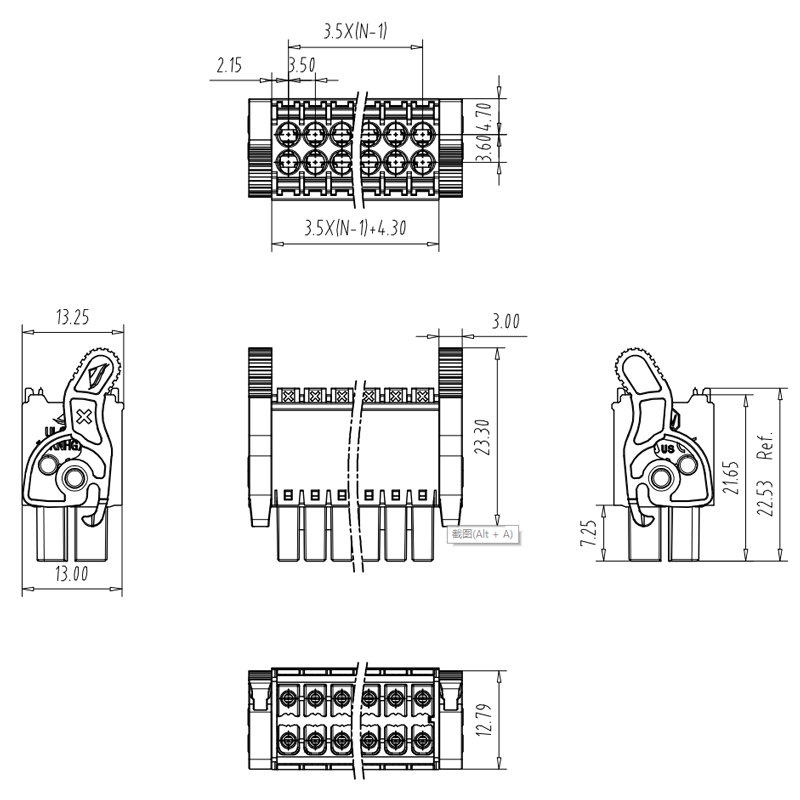

The ULO-TB01-15KNHG/3.5 is a 3.5 mm pluggable terminal block plug designed for detachable wire-to-board connections in control boards, instruments and compact industrial devices. Key specifications include 3.5 mm pitch, 9.5A rated current, 250V rated voltage, push-in spring connection, 0° connection direction, pluggable mounting, available in 4 to 48 positions. Product design details include PA66 insulation, UL94V-0 flammability rating, default green housing color. Use it with matching products from the same pitch and series to support installation, maintenance and module replacement.
Product Family
Key Features
Pluggable Wiring Design
Detachable plug design allows quick connection and disconnection, making installation, testing, and maintenance more efficient.
Reliable Wire Termination
High-quality contact structure ensures stable wire retention and reliable power or signal transmission.
Flexible Pitch & Pole Options
Available in multiple pitches, pole numbers, wiring directions, and connection styles to match different PCB layouts and application needs.
Typical Applications
PCB Signal Connection
Ideal for connecting field wiring to printed circuit boards in control devices, instruments, and electronic equipment.
Power Supply Interfaces
Suitable for detachable power input and output connections in power modules, controllers, and industrial devices.
Industrial Control Equipment
Used in PLCs, drives, control boards, I/O devices, and automation control systems requiring reliable pluggable wiring.
Maintenance-Friendly Devices
Enables fast module replacement, convenient field maintenance, and reduced downtime without rewiring the whole system.
