ULO-TB43-35C/A
Compact barrier terminal block for secure panel wiring, power distribution and field wiring termination, featuring 8.25 mm pitch, 24A/320V, screw connection.
Certifications
Core Applications
ULO-TB43-35C/A
Compact barrier terminal block for secure panel wiring, power distribution and field wiring termination, featuring 8.25 mm pitch, 24A/320V, screw connection.
Product Overview

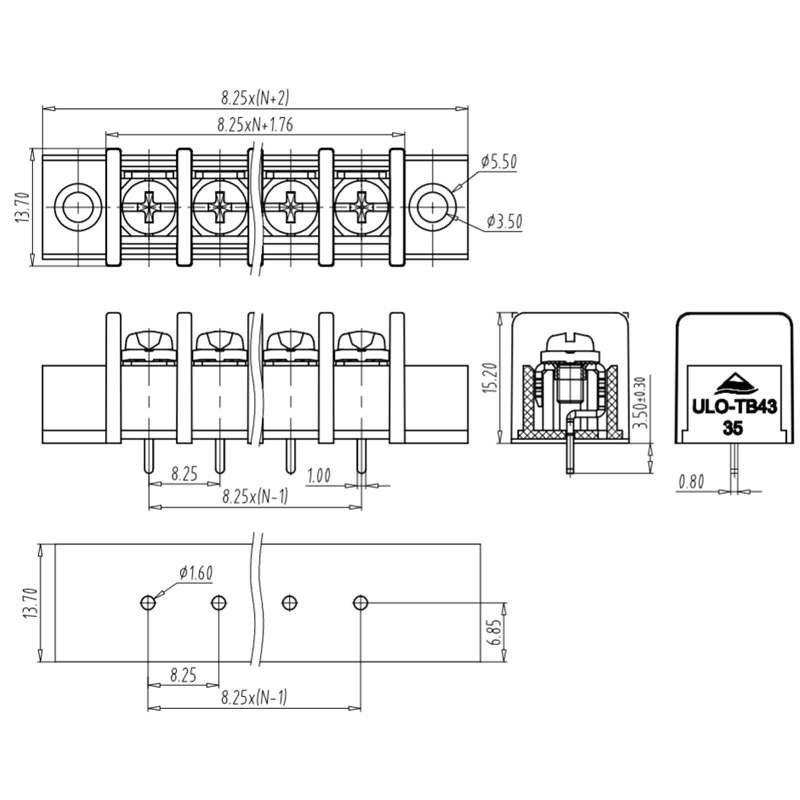

The ULO-TB43-35C/A is an 8.25 mm barrier type terminal block designed for secure panel wiring, power distribution and field wiring termination. Key specifications include 8.25 mm pitch, 24A rated current, 320V rated voltage, screw connection, available in 2 to 24 positions. Product design details include PA66 insulation, UL94V-0 flammability rating, default black housing color.

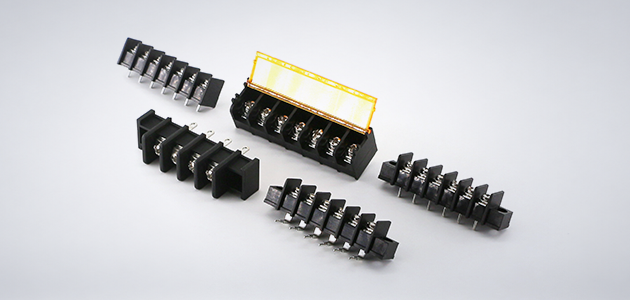

Product Family
Key Features
Barrier-Type Safety Design
Insulated barrier structure helps separate adjacent circuits and improve wiring safety in power and control applications.
Secure Screw Connection
Screw-clamp termination provides strong wire retention and reliable electrical contact for stable power transmission.
Flexible Configuration Options
Available in multiple pitches, pole numbers, cover options, and mounting styles to meet different equipment design needs.
Typical Applications
Power Supply Equipment
Suitable for power input and output wiring in power supplies, adapters, converters, and power distribution units.
Industrial Control Systems
Used for secure power and signal connection in control panels, controllers, drives, and automation equipment.
Information & Communication Devices
Ideal for terminal wiring in communication equipment, control interfaces, and electronic system modules.
Electrical Appliances
Applied in household appliances, commercial equipment, and electrical devices requiring reliable screw terminal connection.
