ULO-TB01-15KNVHM/3.5
Compact pluggable terminal block PCB header for PCB header applications that mate with compatible pluggable terminal block plugs, featuring 3.5 mm pitch, 8A/160V, 90° connection direction, through-hole soldering mounting.
Certifications
Core Applications
ULO-TB01-15KNVHM/3.5
Compact pluggable terminal block PCB header for PCB header applications that mate with compatible pluggable terminal block plugs, featuring 3.5 mm pitch, 8A/160V, 90° connection direction, through-hole soldering mounting.
Product Overview

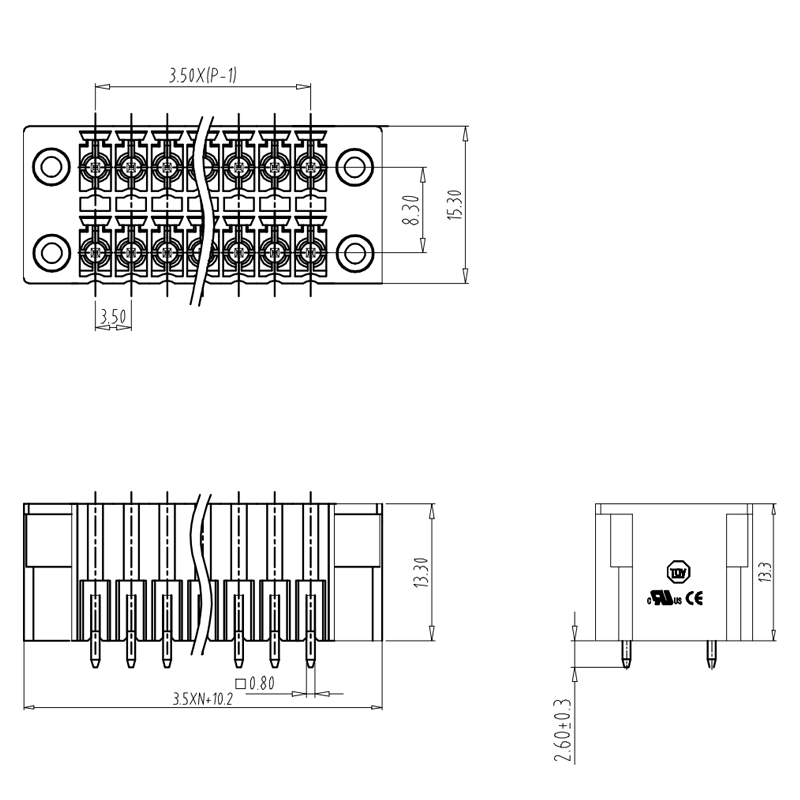

The ULO-TB01-15KNVHM/3.5 is a 3.5 mm pluggable terminal block PCB header designed for PCB header applications that mate with compatible pluggable terminal block plugs. Key specifications include 3.5 mm pitch, 8A rated current, 160V rated voltage, 90° connection direction, through-hole soldering mounting, available in 4 to 48 positions. Product design details include PA66 insulation, UL94V-0 flammability rating, default green housing color. Use it with matching products from the same pitch and series to support installation, maintenance and module replacement.
Product Family
Key Features
PCB-Mounted Header Design
Designed as the board-side mating part for pluggable terminal block plugs, enabling secure PCB connection and easy module assembly.
Flexible Mounting Options
Available in multiple pitches, pole numbers, pin layouts, and horizontal or vertical mounting styles for different PCB designs.
Reliable Plug-In Connection
Matched plug-and-header structure provides stable electrical contact for power and signal transmission.
Typical Applications
PCB Power Interfaces
Ideal for detachable power input and output connections on power supplies, controllers, and industrial electronic devices.
Signal & Control Boards
Suitable for connecting control signals between field wiring and printed circuit boards in automation equipment.
Modular Electronic Devices
Used in devices that require plug-in maintenance, quick replacement, or flexible board-to-wire connection.
Industrial Equipment Design
Widely applied in PLCs, I/O modules, drives, instruments, control panels, and other industrial electronic systems.
