ULO-PH409A
ULO-PH409A pin header for reliable PCB, cable, or electronic interface connection.
Product Overview

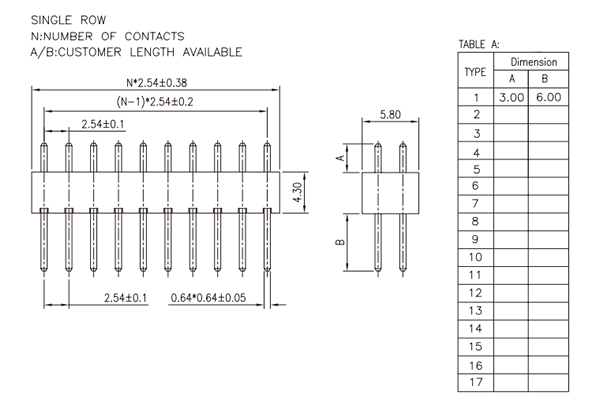

The ULO-PH409A is a pin header designed for reliable electronic and PCB connection applications. It supports 2.54mm 2.54mm Pin Header for board-to-board or wire-to-board signal connection on printed circuit boards. Key parameters include pitch: 2.54mm, type: 2.54mm Pin Header, withstand voltage: 500V AC / Minute, rated voltage: 500V AC (rms) for 1 Minute. This series is suitable for compact electronic equipment, control devices, signal interfaces, test fixtures, and general PCB assembly requirements.
Product Family
Key Features
Reliable PCB Pin Connection
Designed for stable electrical connection between PCB boards, modules, and electronic components.

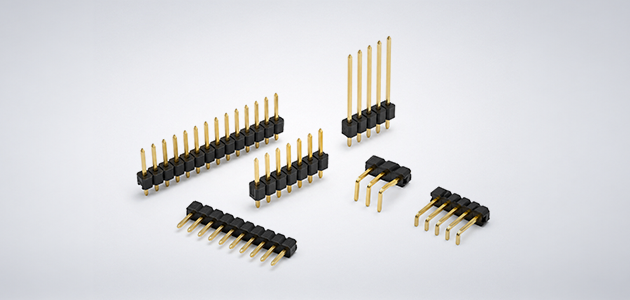

Flexible Mounting Options
Available in straight, right-angle, and SMT mounting styles to support different PCB layouts and assembly requirements.
Multiple Pitch & Row Options
Supports various pitch, pin count, and single-row or dual-row configurations for flexible board-level connection design.
Typical Applications
PCB Board Connection
Ideal for signal and power connection between printed circuit boards and electronic modules.
Board-to-Board Interfaces
Used with matching female headers to build reliable board-to-board connection systems.
Electronic Equipment Manufacturing
Suitable for controllers, instruments, communication devices, power modules, and general electronic products.
Development & Testing
Commonly used in prototyping, debugging, test fixtures, and modular electronic designs.

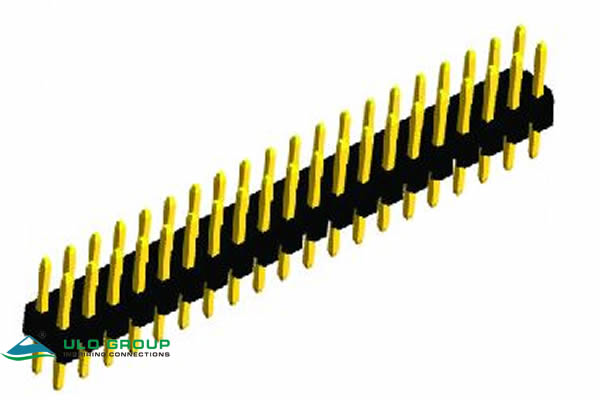

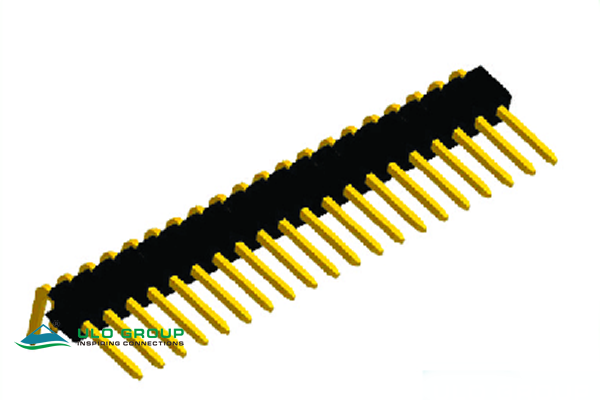

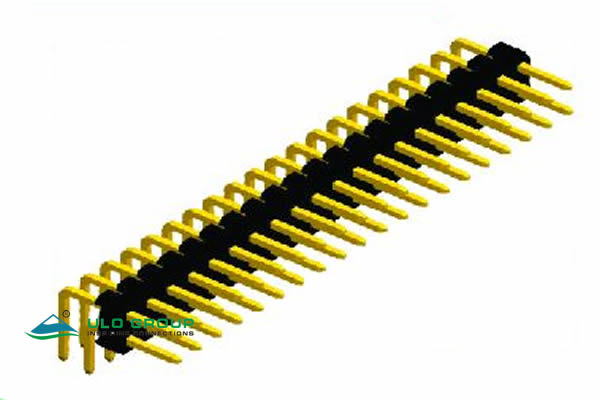

Similar Products
